宏源機械生產的膠帶輸送機具有輸送量大、輸送距離長、輸送平穩(wěn)，物料與輸送帶沒有相對運動，噪音較小，結構簡單、維修方便、能量消耗少、部件標準化等優(yōu)點，輸送帶根據摩擦傳動原理而運動，適用于輸送堆積密度小于1.67/噸/立方米，易于掏取的粉狀、粒狀、小塊狀的低磨琢性物料及袋裝物料，如煤、碎石、砂、水泥、化肥、糧食等。
膠帶輸送機的帶寬、機長及裝配形式可根據客戶要求定制，傳動可用電滾筒，也可用帶驅動架的驅動裝置。
Characteristic
Hongyuan Vibration production of belt conveyor are characterized by their smooth bue, long transport distance, transport, materials and conveyor belt is no relative movement, low noise, simple structure, convenient maintenance, less energy consumption, and the advantages of parts standardization, conveyor belt according to the principle of friction drive and movement, is suitable for conveying bulk density is less than 1.67 ton/cubic meters, easy to take out the powder, granular, small block of low grinding cut materials, or packaged materials, such as coal, gravel, sand, cement, chemical fertilizer, food, etc.
The bandwidth of the belt conveyor, the captain and assembly form can be customized according to customer requirements, transmission electric drum are available, and can also be used with drive of drive device.
Characteristic
Hongyuan Vibration production of belt conveyor are characterized by their smooth bue, long transport distance, transport, materials and conveyor belt is no relative movement, low noise, simple structure, convenient maintenance, less energy consumption, and the advantages of parts standardization, conveyor belt according to the principle of friction drive and movement, is suitable for conveying bulk density is less than 1.67 ton/cubic meters, easy to take out the powder, granular, small block of low grinding cut materials, or packaged materials, such as coal, gravel, sand, cement, chemical fertilizer, food, etc.
The bandwidth of the belt conveyor, the captain and assembly form can be customized according to customer requirements, transmission electric drum are available, and can also be used with drive of drive device.
膠帶輸送機動畫演示
Animation Show
以上為某砂石生產流水線的動畫演示，動畫中多臺皮帶輸送機與破碎機、振動篩等機械設備，組成一條完整的砂石生產流水線，大大提高工作效率。
The above as a demo for a sand production line, many sets of belt conveyor in animation and crusher, vibrating screen and other mechanical equipment, form a complete sand production line, improve the work efficiency greatly.
The above as a demo for a sand production line, many sets of belt conveyor in animation and crusher, vibrating screen and other mechanical equipment, form a complete sand production line, improve the work efficiency greatly.

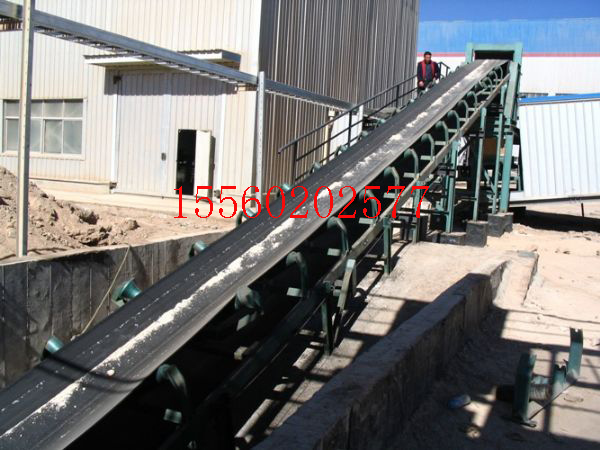

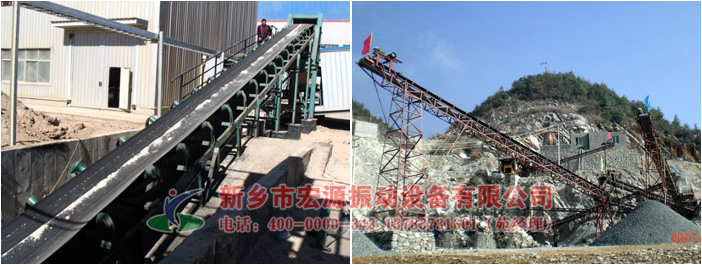

膠帶輸送機使用現場
Working site
膠帶輸送機技術參數
Parameter| 膠帶寬度 (mm) | 輸送長度(m) 功率(kw) | 輸送速度(m/s) | 輸送量(t/h) | ||
|---|---|---|---|---|---|
| 500 |
≤12 3 |
12-20 4-5.5 |
20-30 5.5-7.5 |
1.3-1.6 | 78-191 |
| 650 |
≤12 4 |
12-20 5.5 |
20-30 7.5-11 |
1.3-1.6 | 131-323 |
| 800 |
≤6 4 |
6-15 5.5 |
15-30 7.5-15 |
1.3-1.6 | 278-546 |
| 1000 |
≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.3-2.0 | 435-853 |
| 1200 |
≤10 7.5 |
10-20 11 |
20-40 15-30 |
1.3-2.0 | 655-1284 |
